STRAUMANN
Bone Level Type
Healing Abutment
| Type | NC | RC | ||
|---|---|---|---|---|
| Cuff/ Diameter | 3.6(D) | 4.8(D) | 5.0(D) | 6.5(D) |
| 2.0(C) | NCBHN3620(A) | NCBHN4820(A) | RCBHN4520(A) | RCBHN6020(A) |
| 3.5(C) / 4.0(C) | NCBHN3635(A) | NCBHN4835(A) | RCBHN4540(A) | RCBHN6040(A) |
| 4.0(C) | NCBHN3650(A) | NCBHN4850(A) | RCBHN4560(A) | RCBHN6060(A) |
·How to use: Use Torox Driver / Tightening torque 5 ~ 8Ncm
·Color: NC yellow/ RC Purple
·Purpose of use: Formation of gingiva by fastening to fixture during healing.
Abutment can be selected according to the patient’s gum height.
Pick up Impression Coping
| Length/Type | NC | RC | ||
|---|---|---|---|---|
| 16.0(L) | NCBIH4015S | RCBIH4415S | ||
| 24.0(L) | NCBIH4015L | RCBIH4415L | ||
·How to use: Use Torox Driver
·Components: Impression Coping + Guide pin
·Purpose of use: Used for impression acquisition using custom tray
STRAUMANN
Bone Level Type

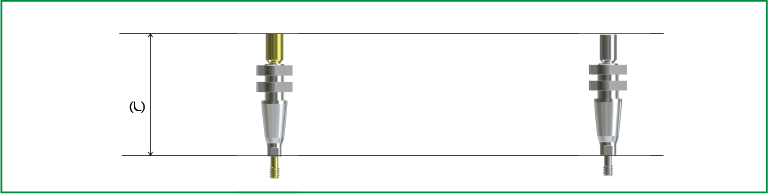

Lab Analog
| Length/Type | NC | RC | ||
|---|---|---|---|---|
| 12.0(L) | NCBLH01 | RCBLH01 | ||
·Purpose of use: Implement intraoral fixture in working model.
Cover Screw
| Type | NC | RC | ||
|---|---|---|---|---|
| NCBCS16(A) | RCBCS16(A) | |||
·How to use: Use Torox Driver
·Color: NC yellow/ RC Purple
·Purpose of use: Protect implant connection after implant placement
