SuperLine Type Prothetics flow chart
SuperLine Type

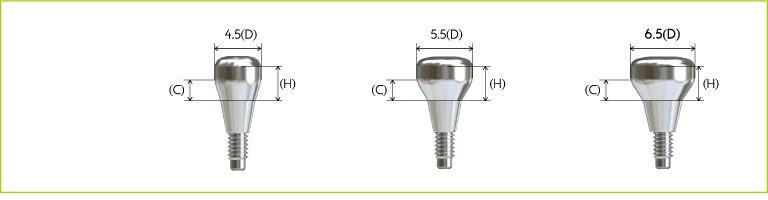

Healing Abutment
| Hight / Diameter | 4.5(D) | 5.5(D) | 6.5(D) |
|---|---|---|---|
| 2.0(H) | IMHN452020 | IMHN552020 | IMHN652020 |
| 2.0(C) / 3.5(H) | IMHN452035 | IMHN552035 | IMHN652035 |
| 3.0(C) / 5.0(H) | IMHN453050 | IMHN553050 | IMHN653050 |
| 4.0(C) / 7.0(H) | IMHN454070 | IMHN554070 | IMHN654070 |
·How to use: Use 1.25 Hex Driver / Tightening Torque 5 ~ 8Ncm
·Purpose of use: Formation of gingiva by fastening to fixture during healing.
Abutment can be selected according to the patient’s gums height.
Pick up Impression Coping
( Hex )
| Length / Diameter | 4.5(D) | 5.5(D) |
|---|---|---|
| 17.0(L) | IMIH45S | IMIH55S |
| 21.0(L) | IMIH45L | IMIH55L |
·How to use: Use 1.25 Hex Driver
·Components: Impression Coping + Guide pin / Connection Hex
·Purpose of use: Used for impression acquisition using custom tray
